Jetnuts JNT

Hex Key Actuation

The JNT-Model Jetnut is a self contained unit with limited travel for close tolerance applications where the customer wishes to not use a Grease Gun Activation Unit. No external reservoirs or guns are needed for this unit.

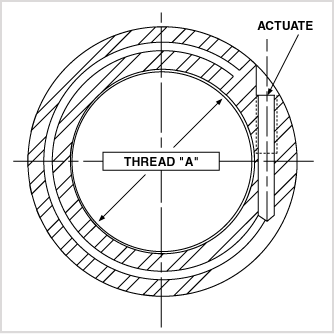

schematic of JNT actuation

To put on Jetnut

  1. Spin "Jetnut" on by hand until snug.
  2. With hex key turn actuating screw clockwise engaging pressure.
To Remove Jetnut

  1. Using hex key, loosen actuate screw.
  2. Tighten Jetnut reset pressure pad system.
  3. Jetnut will now spin off by hand.
To Refill Jetnut

  1. Leave Jetnut snug against part.
  2. Remove 1/4" cone point screw.
  3. Insert #1698 alemite fitting into hole.
  4. Pump grease into nut until pressure is felt in grease gun handle.
  5. Remove alemite fitting and replace 1/4" cone point screw.
Part # Max Thread Pressure Pad OD Body Diameter Thickness Actuate Size
JNT5000 3.00" 4.25" 5.0" 2.0" 3/8"
JNT5500 3.50" 4.75" 5.50" 2.0" 1/2"
JNT6000 3.75" 5.0" 6.0" 2.0" 1/2"
JNT7000 4" 6.0" 7.0" 2.0" 1/2"
JNT8000 5.5" 7.0" 8.0" 2.0" 1/2"
JNT9000 6.5" 8" 9" 2" 1/2"
JNT10000 7.5" 9" 10" 2" 1/2"
JNT11000 7.5" 10" 11" 2" 5/8"
JNT12000 8.75" 11" 12" 2" 5/8"
JNT13500 9" 12" 13.5" 2" 5/8"
JNT14500 10.25" 13" 14.5" 2.5" 5/8"
JNT15500 11" 14" 15.5" 2.5" 5/8"
JNT16500 12" 14.75" 16.5" 2.5" 5/8"
JNT17500 13" 15.75" 17.5" 2.5" 5/8"

JNT100 1" 1 1/2" 2 1/2" 1 1/4" 3/8"
JNT125 1 1/4" 1 3/4" 2 3/4" 1 1/4" 3/8"
JNT150 1 1/2" 2" 3 1/8"" 1 3/16" 3/8"
JNT200 2" 2 3/4" 3 3/4" 1 3/16" 3/8"

Note: Larger JNT models available in aluminum to reduce weight.

Note: JNT Model also available in larger sizes.
